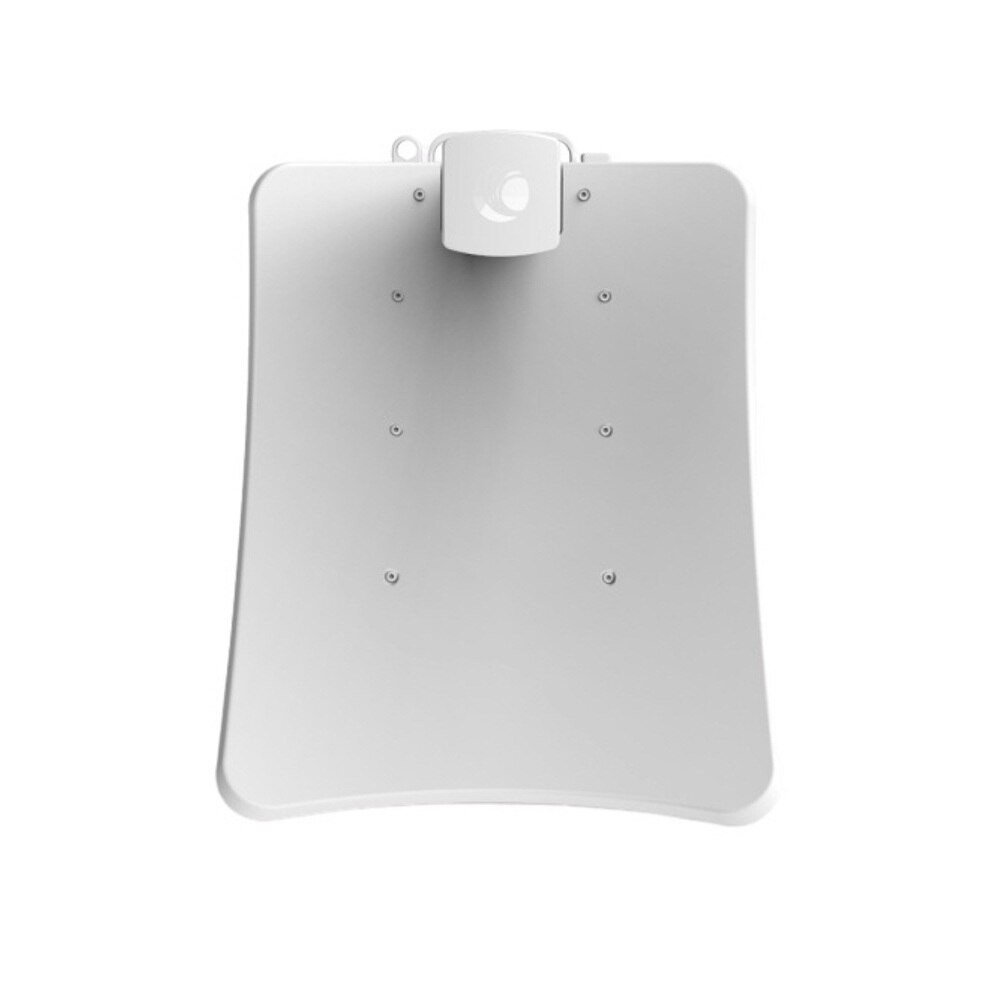

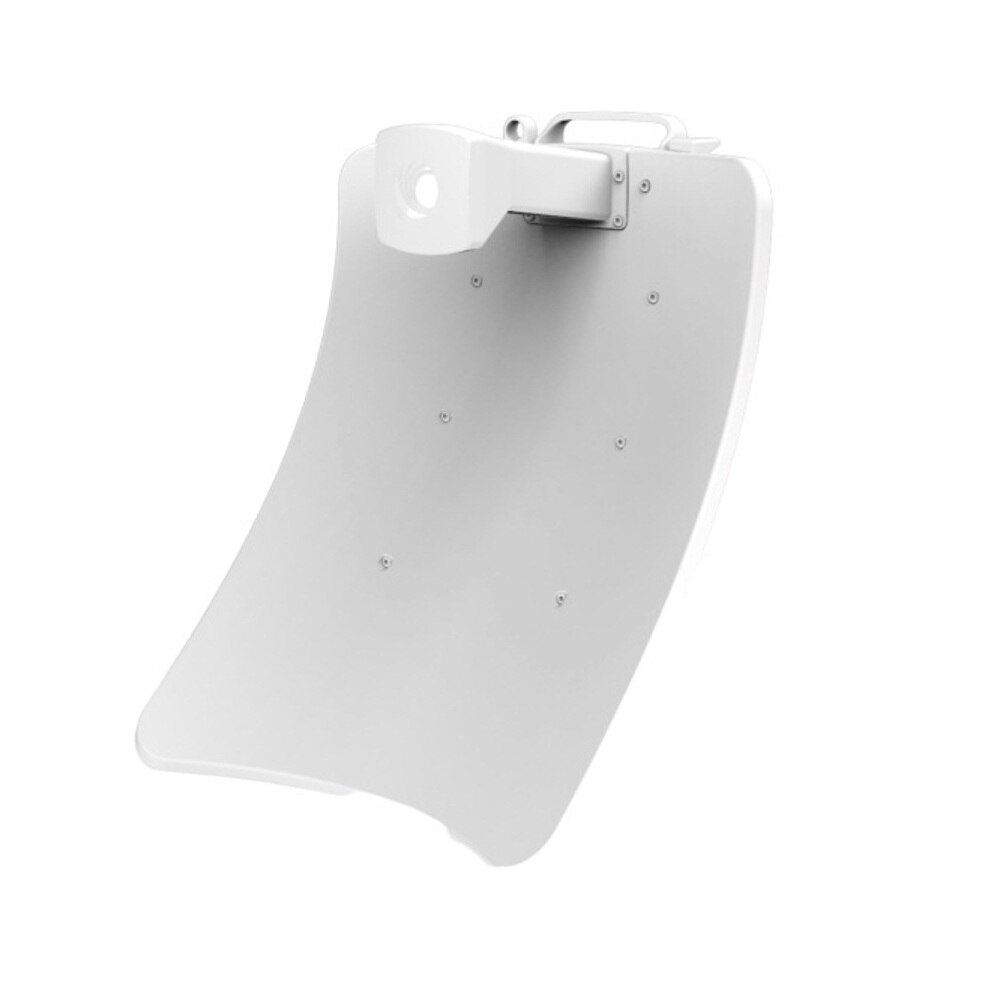

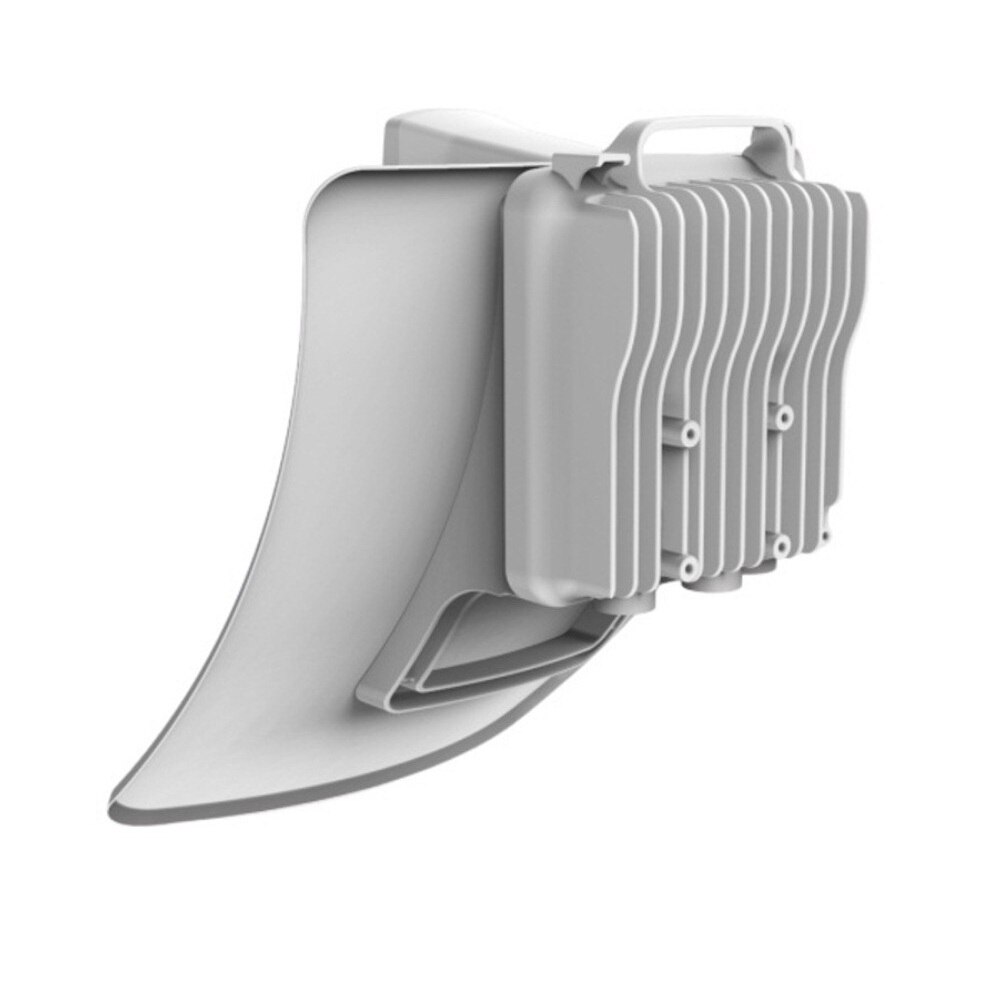

Cambium Networks cnWave 60GHz V3000 Client Node Antenna Assembly 44.5dBi 4-Pack
- SKU: C600500D003A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks’ 60GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.
V3000 is featured with a 44.5dBi high-gain antenna with beamforming. The client nodes can support up to 7.6Gbps with channel bonding for both PMP and PTP configurations.
Product Features- Cloud and on-premises management
- Easy installation with autobeamforming
- Supports 57 to 66GHz
- 44.5dBi Antenna Gain
- Integrated Antenna
- ±2° Azimuth, ±1° Elevation
- 60GHz cnWave V3000 client node antenna assembly, 44.5dBi
- 60 GHz cnWave V3000 Client Node Radio: C600500C024A
- Tilt Bracket Assembly: N000045L002A
- cnWave Precision Mounting Bracket: C000000L125A
- Power Supply
Specifications
| Spectrum | |
| Frequency Range | 57GHz to 66GHz in a single SKU |
| Channel Width | 2.16GHz, 4.32GHz* |
| Carrier Bonding* | Up to 2 adjacent channels |
| Mode of Operation | PMP or Mesh, PTP |
| Interface | |
| Channel Access | TDMA/TDD |
| Ethernet Interface | 1 x 100/1000/10G BaseT with PoE In 1 x 100/1000 BaseT with 802.3at PoE Out 1 x SFP+ |
| Ethernet | |
| Protocol Supported | IPv4, IPv6 |
| Network Management | cnMaestro, HTTP, HTTPS, SNMP v2c and v3 |
| MTU | 4,000 bytes |
| VLAN* | 802.1ad (QinQ), 802.1Q with 802.1p priority |
| QoS* | 4 Level QoS, DSCP and VLAN Tag |
| Security | |
| Encryption | 128-bit AES (optional) |
| Firmware Security | Signed Firmware Images |
| Performance | |
| Modulation and Coding Schemes | MCS-0 (BPSK) to MCS-12 (16-QAM) |
| Latency | < 1ms |
| Maximum EIRP | 60.5dBm |
| Antenna | |
| Gain | 44.5 dBi |
| Type | Integrated |
| Beamforming Scan Range | ± 2° azimuth, ± 1° elevation |
| Beam Width | 0.8° |
| Powering | |
| Type | Passive PoE (42V - 57V) without AUX PoE Out in use |
| Power Consumption | 55W with AUX PoE Out in use, 30W without AUX PoE Out in use |
| Physical | |
| Environmental | IP66/67 |
| Temperature | −40°C to 60°C (−40°F to 140°F) |
| Mean Time Between Failure | > 40 years |
| Weight | < 4 kg (8.8 lbs) |
| Dimensions W x H x D | 346mm x 414mm x 344mm (13.6in x 16.3in x 13.5in) |
| Wind Survival | 200km/h (124mi/h) |
*Available in future release
