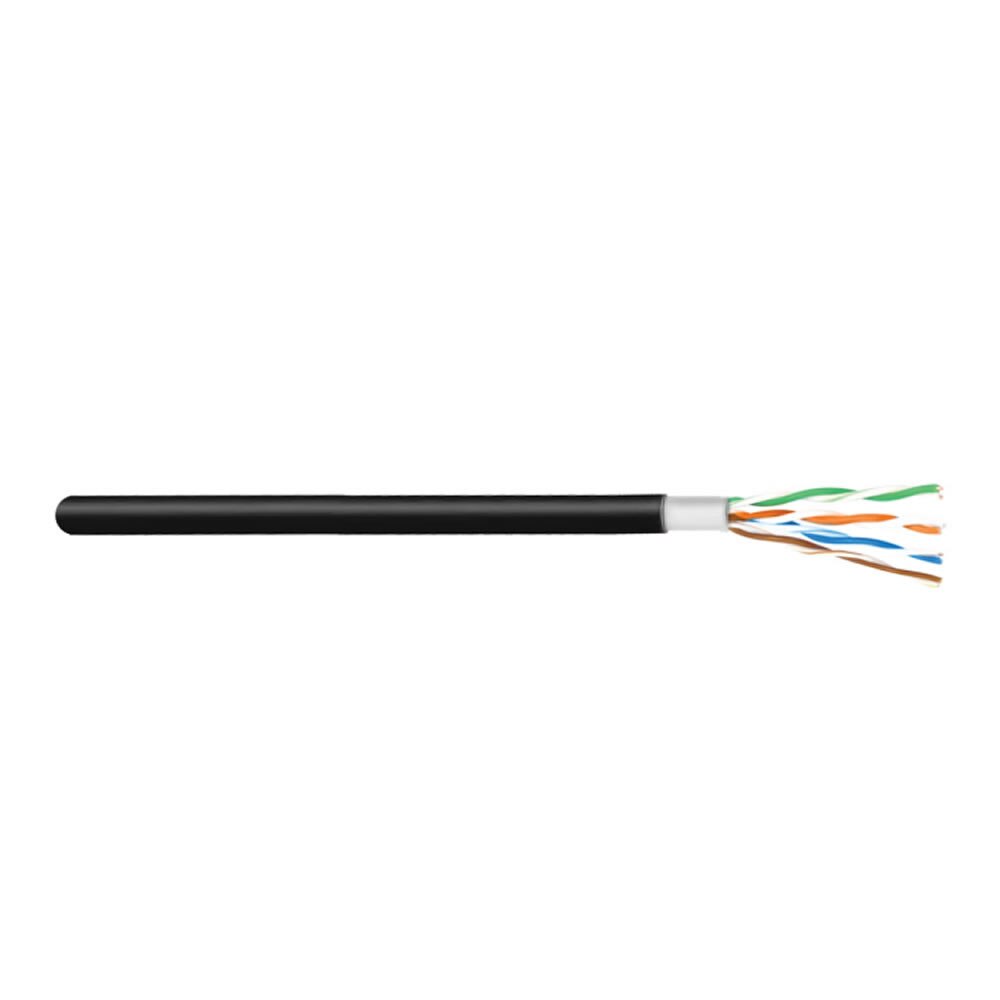

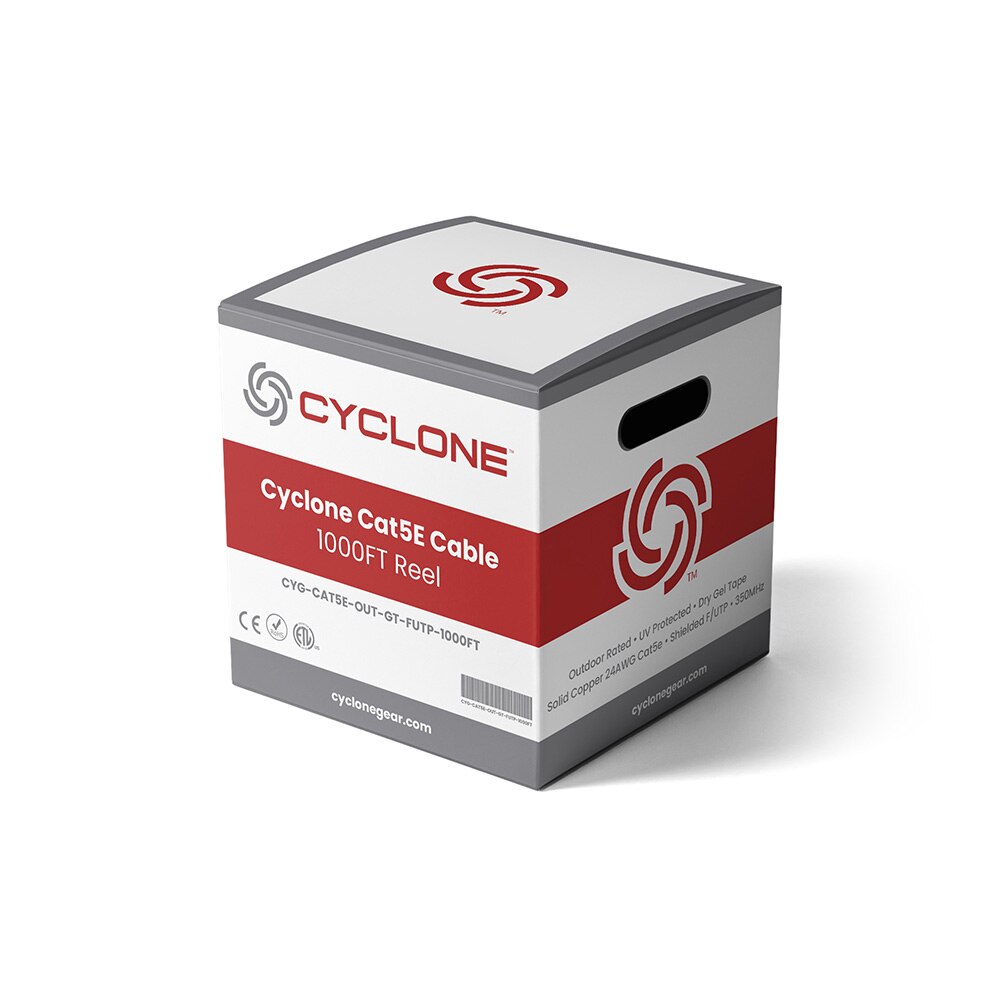

Cyclone CAT5e/6A F/UTP 24AWG Solid Copper Dry Gel Tape Outdoor LDPE Black 1000FT

CAT5E

CAT6A

• ANSI/TIA-568.2-C
• ISO 11801 2nd
• ROHS2011/65/EU

• ANSI/TIA-568-C.2
• ISO 11801 2nd
• IEC 61156-5
• ROHS 2011/65/EU

• ZO: 1-100MHZ 100±15 (Ohms)
• Operating Frequency: ＞=100Mhz
• Loss: <=21dB/100m at 100MHz Frequency
• DC Resistance 20°C:≤9.4(Ohms/100m)
• Insulation Resistance:＞ 5000MΩ*KM
• Nominal working voltage: <250V
• Test Voltage: <1200 V
• Bending radius: ≈ 8 x cable

• DC Resistance 20°C: ≤8.4(Ohms/100m)
• Dielectric strength: ≤1.0kV/min
• Insulation Resistance:>5000MΩ*KM
• DC Resistance balance :<2.5%
• Impedance:1-250MHZ 100±15 (Ohms)
• Pair-to-Ground Capacitance Unbalance: ≤330 pF/100m
