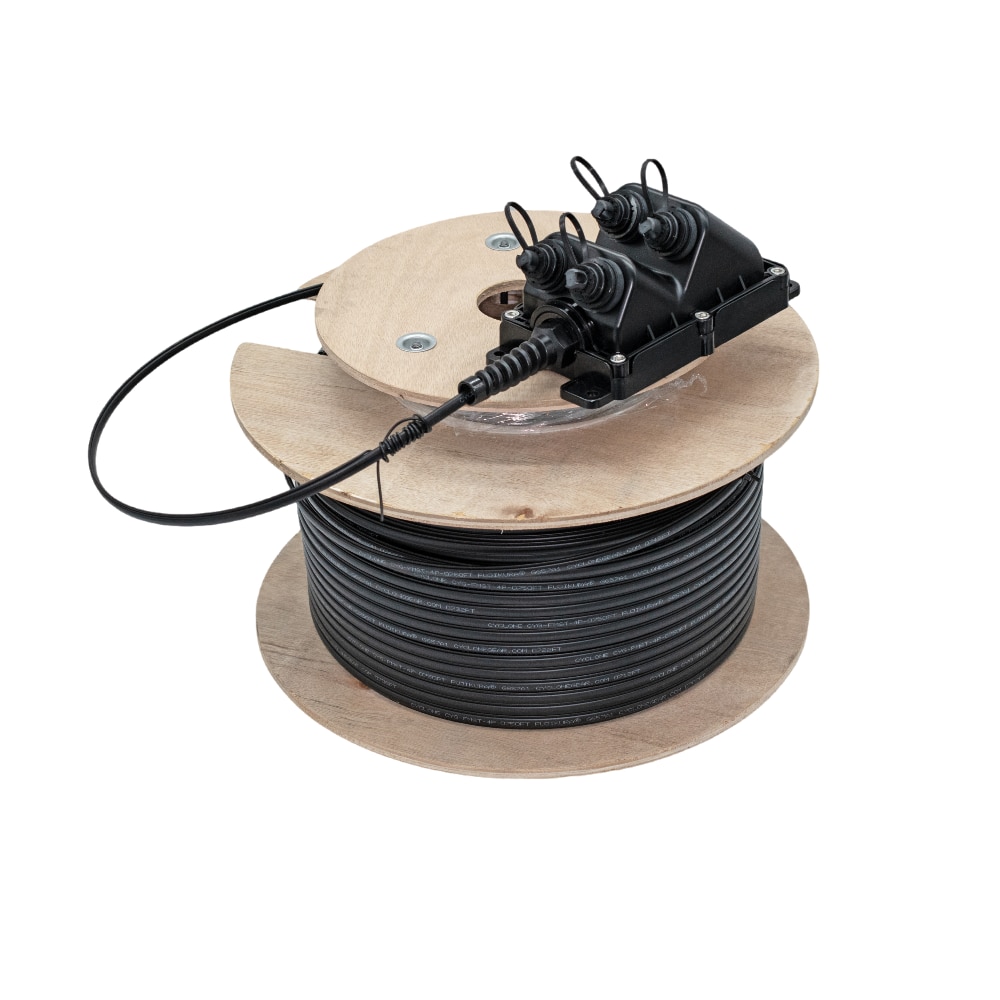

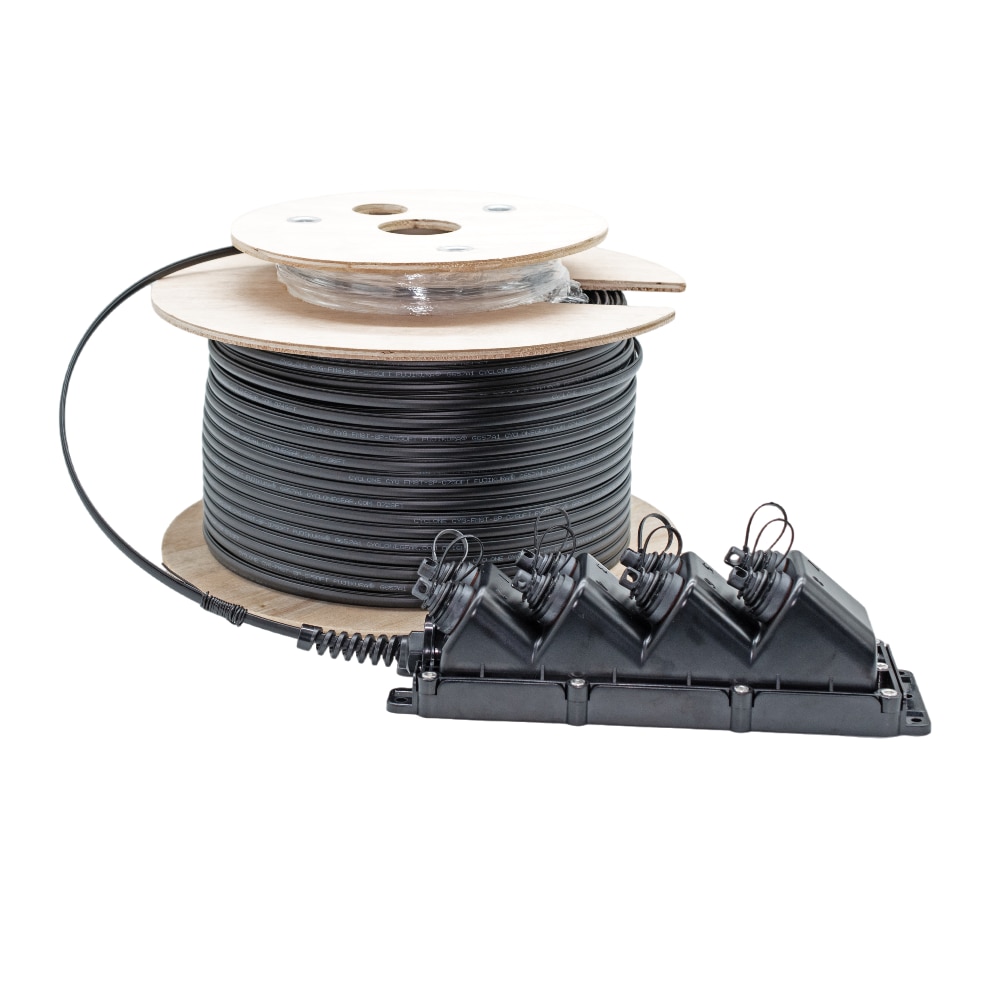

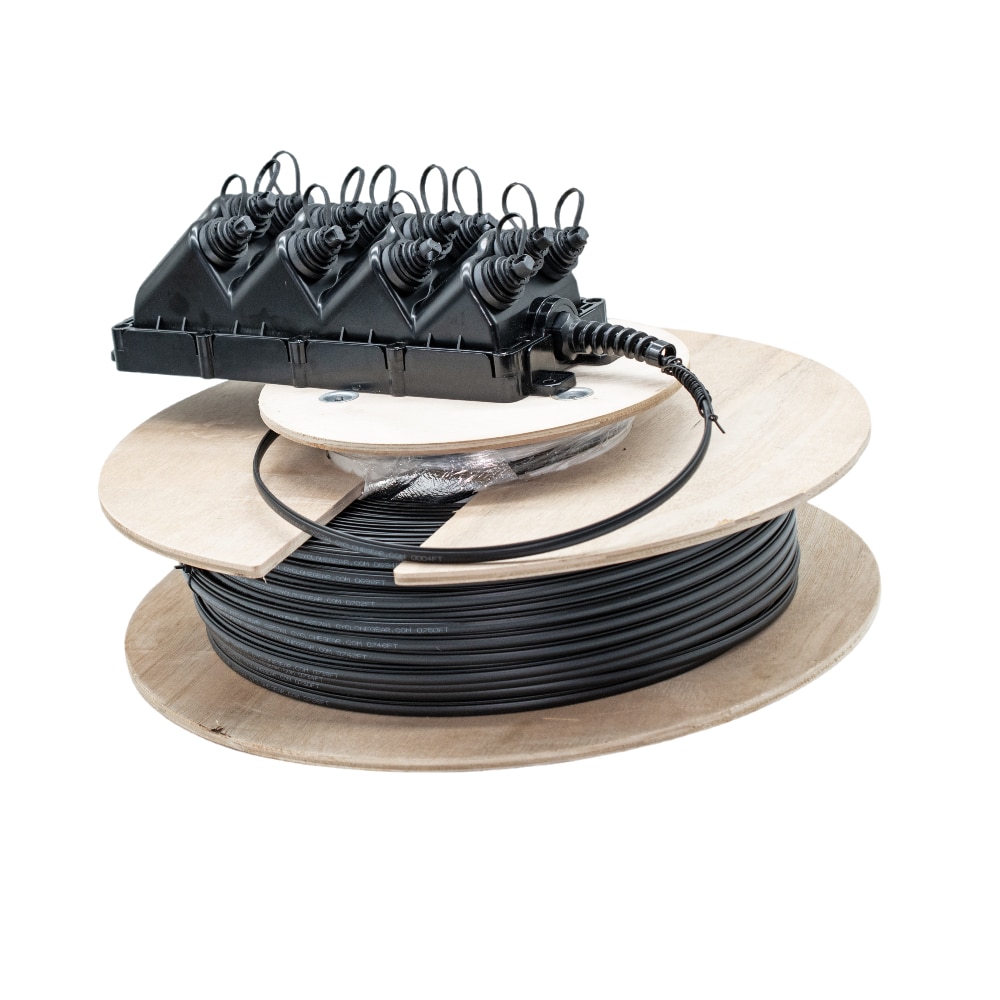

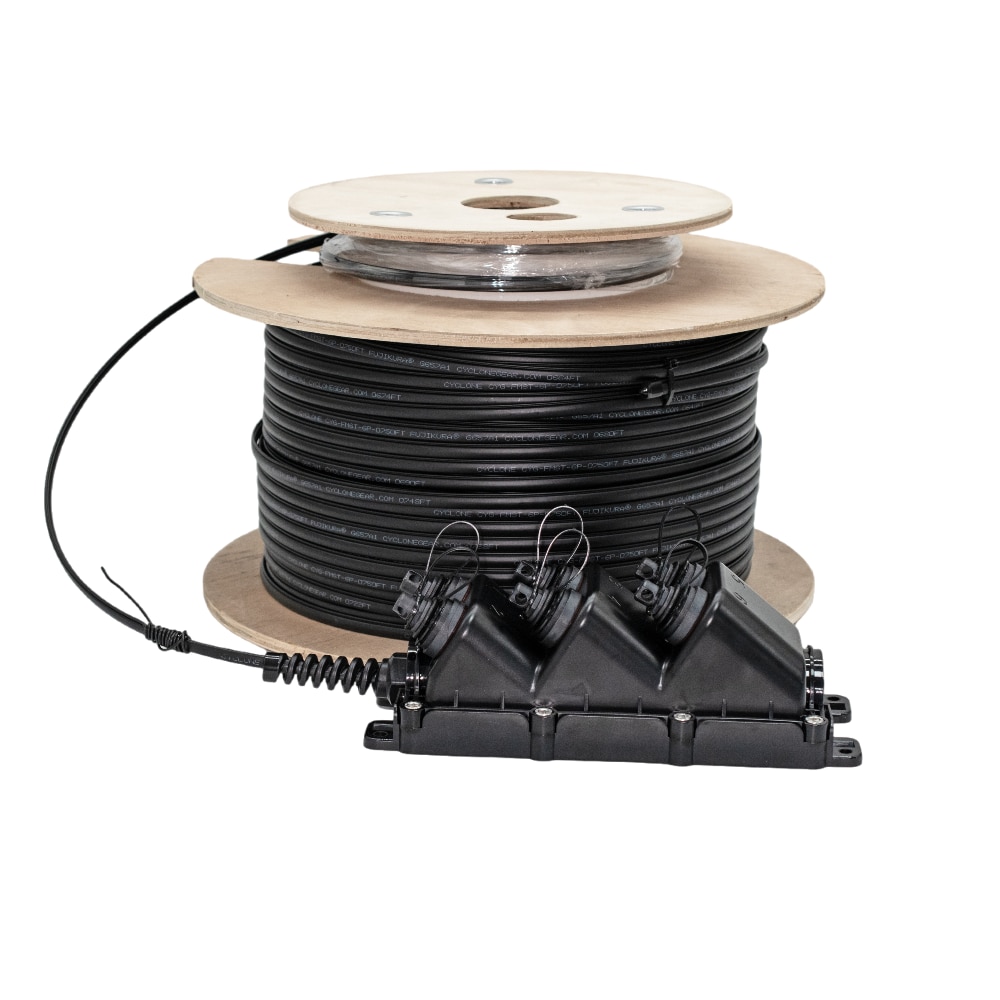

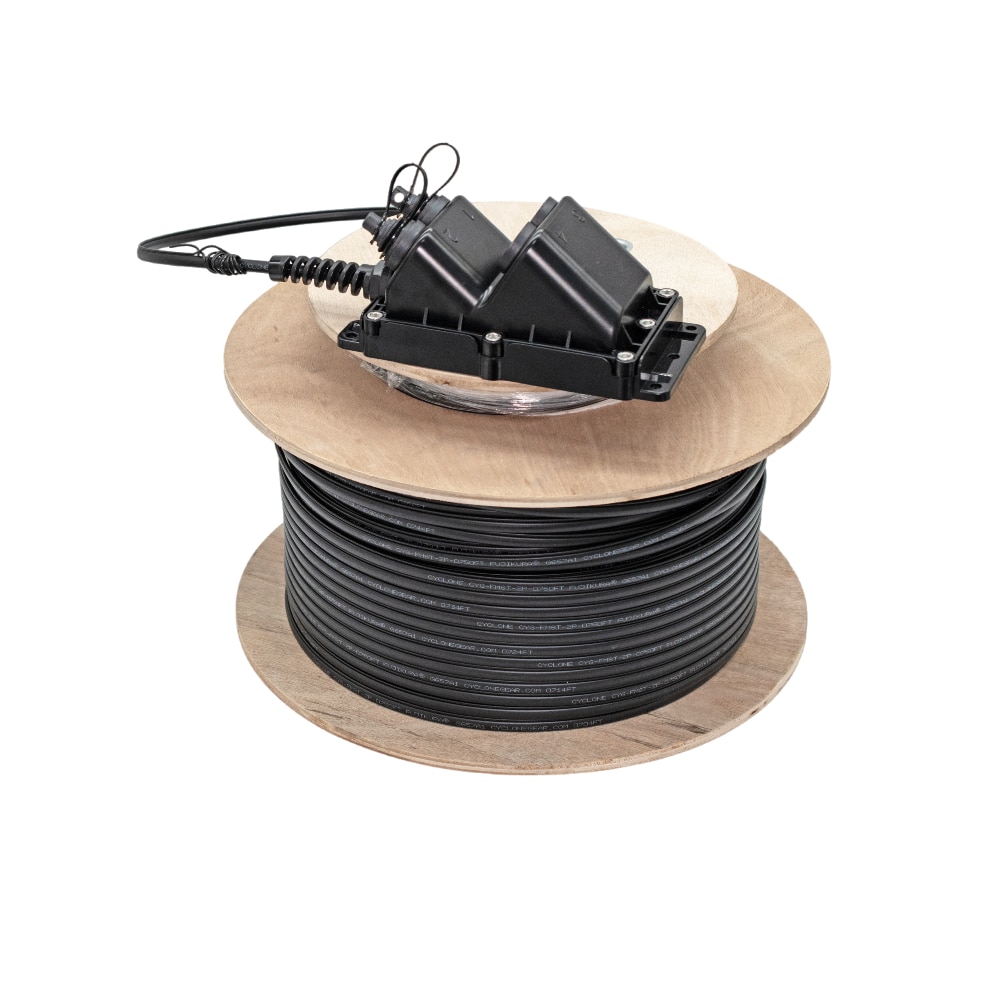

Cyclone Multi Service Terminal 2, 4, 6, 8, 12 Hardened SC/APC OptiTap compatible ports, Singlemode, Toneable G.657.A Blunt End
- SKU: CYG-FMST
$142.99 to $710.43Select options
- Manufacturer: Cyclone
- CYG-FMST-2P - Data Sheet: Download
- CYG-FMST-6P - Data Sheet: Download
- CYG-FMST-8P - Data Sheet: Download
Product Information
Multi Service Terminal 2P, 4P, 6P, 8P, 12P Hardened SC/APC OptiTap compatible ports, Singlemode, Toneable G.657.A Blunt End Feet Length
2 or 4 Port Optitap Compatible MST 2 / 4 Fiber Flat Drop Blunt Pigtail Toneable Fujikura G657.A1
Cyclone CYG-FMST-6P-XXXFT
6 Port Optitap Compatible MST 6 Fiber Flat Drop Blunt Pigtail Toneable Fujikura G657.A1
Cyclone CYG-FMST-8P-XXXFT
8 Port Optitap Compatible MST 8 Fiber Flat Drop Blunt Pigtail Toneable Fujikura G657.A1
Cyclone CYG-FMST-12P-XXXFT
12 Port Optitap Compatible MST 12 Fiber Flat Drop Blunt Pigtail Toneable Fujikura G657.A1
Available in Lengths of 100, 250, 500, 750, 1000, 1250, 1500, and 1750FT
Specifications
Specifications CYG-FMST-2P-XXXFT
| Dimensions (H x W x D) | 8.5 x 4.5 x 3.5in (215 x 115 x 90mm) |
| Connector Support | Hardened SCAPC |
| Insertion Loss (dB) @1310&1550nm | Typical <0.3, Max <0.5 |
| Return Loss (dB) | >60 |
| Operation Temperature | -40 to 158°F (-40 to 70°C) |
| Ingress Protection | IP68 |
| Installation Mounting | Pole, Aerial, Wall |
| Glass Type | Fujikura G657.A1 |
| Available in Lengths | 100, 250, 500, 750, 1000, 1250, 1500, and 1750FT |
Specifications CYG-FMST-6P-XXXFT
| Dimensions (H x W x D) | 10.6 x 4.5 x 3.5in (270 x 115 x 90mm) |
| Connector Support | Hardened SCAPC |
| Insertion Loss (dB) @1310&1550nm | Typical <0.3, Max <0.5 |
| Return Loss (dB) | >60 |
| Operation Temperature | -40 to 158°F (-40 to 70°C) |
| Ingress Protection | IP68 |
| Installation Mounting | Aerial |
| Glass Type | Fujikura G657.A1 |
| Available in Lengths | 100, 250, 500, 750, 1000, 1250, 1500, and 1750FT |
Specifications CYG-FMST-8P-XXXFT
| Dimensions (H x W x D) | 13.4 x 4.5 x 3.7in (340 x 115 x 95mm) |
| Connector Support | Hardened SCAPC |
| Insertion Loss (dB) @1310&1550nm | Typical <0.3, Max <0.5 |
| Return Loss (dB) | >60 |
| Operation Temperature | -40 to 158°F (-40 to 70°C) |
| Ingress Protection | IP68 |
| Installation Mounting | Aerial |
| Glass Type | Fujikura G657.A1 |
| Available in Lengths | 100, 250, 500, 750, 1000, 1250, 1500, and 1750FT |
Specifications CYG-FMST-12P-XXXFT
| Dimensions (H x W x D) | 14.4 x 5.5 x 4.3in (365 x 139 x 110mm) |
| Connector Support | Hardened SCAPC |
| Insertion Loss (dB) @1310&1550nm | Typical <0.3, Max <0.5 |
| Return Loss (dB) | >60 |
| Operation Temperature | -40 to 158°F (-40 to 70°C) |
| Ingress Protection | IP68 |
| Installation Mounting | Aerial |
| Glass Type | Fujikura G657.A1 |
| Available in Lengths | 100, 250, 500, 750, 1000, 1250, 1500, and 1750FT |
