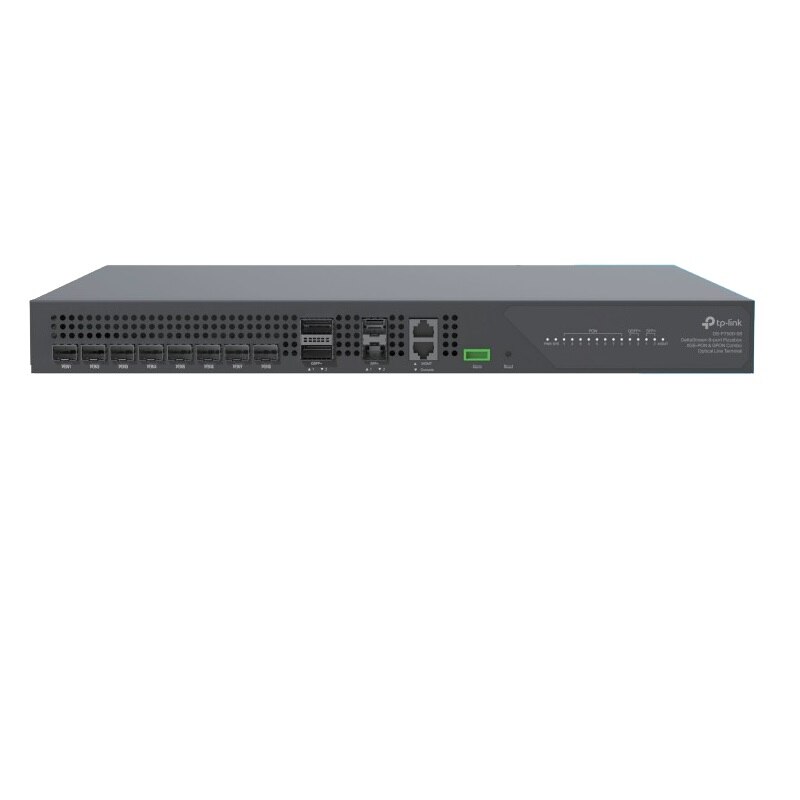

TP-Link DeltaStream 8-port XGS-PON and GPON Combo OLT
- SKU: DS-P7500-08
$5,499.47
Product Information
The DeltaStream 8-Port Pizza-Box XGS-PON & GPON Combo Optical Line Terminal
Product Features- 8x PON Ports: 8x XGS-PON & GPON combo ports support both XGS-PON and GPON service delivery.
- High Scalability: Supports 1:128 splitting ratio for GPON services and 1:256 for XGS-PON.
- High-Speed Uplink Ports: Provides 2x 40G QSFP+ ports and 2x 10G SFP+ ports offer high-bandwidth uplink connectivity.
- Dual Power Supplies: Carrier-class reliability with dual hot-swap AC + DC or mixed power supplies.
- L2 & Advanced L3 Functions: Rich and robust functions satisfy flexible deployment and scalability needs.
- Centralized Management: Supports management via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
- Optical Line Terminal DS-P7500-8
- AC Power Cord
- Console Cable
- Mouting Brackets, Screws and Rubber Feet
- Installation Guide
Specifications
Specifications
| Interface | 2× 40 Gbps QSFP+ Uplink Port, 2× 10 Gbps SFP+ Uplink Port, 8× XGS-PON&GPON Combo Port (SFP+ Slot), 1× RJ45 Console Port, 1× RJ45 MGMT Port, 1× Alarm Port |
| Power Supply | Dual Power Supply, 2 AC, 2DC or AC+DC, AC: 100V~240V, 50/60Hz, DC: -38.4V~-72V |
| Dimensions (W * D * H) | 17.3 ×13.0 × 1.7 in(440 ×330 ×44 mm) |
| Weight | 21lbs |
| Button | 1× RESET button |
| Power Consumption | Max. 103W |
| Combo PON Port Attribute | |
| Max. Splitting Ratio | GPON: 1:128 XGS-PON: 1:256 |
| Data Rate | GPON: Downstream: 2.5Gbps, Upstream: 1.25Gbps XGS-PON: Downstream: 9.953Gbps, Upstream: 9.953Gbps |
| Wave Length | GPON: Tx: 1490nm, Rx: 1310nm XGS-PON: Tx: 1577nm, Rx: 1270nm |
| Fiber Type | 9/125μm SMF (Single Mode Fiber) |
| Transmission Distance | 20km |
| FEC | Support FEC |
| Interface Type | SC/UPC |
| Optical Module Specifications | Type: XGS-PON& GPON Combo Optical Module, Class C+ GPON: TX Power: 3-7dBm, RX Sensitivity: -32dBm XGS-PON: TX Power: 5-8dBm, RX Sensitivity: -29dBm Minimum Overload: GPON: -12dBm, XGS-PON: -8dBm Extinction Ratio: GPON: 8.2dB, XGS-PON: 8.2dB |
| OMCI | Standard OMCI Management Supported |
| ONU Authentication | ONU Auto Authentication |
| Multi-Service | Multi-Service Traffic Identify and Rate Limit |
| Routing Static Routing Mulitcast | IGMP Snooping/MLD Snooping |
| DHCP | DHCP Server, DHCP Relay |
| Security | ACL |
| ONU Security | Rouge ONU Detection and Isolation, Uplink and Downlink Data Encryption |
| QoS | IEEE 802.1p/DSCP QoS Voice VLAN Auto VoIP |
| Centralized Management | Large-Scale Devices Management, OLT Batch Configure, Upgrade, Reboot, Multi-Site Management, Intelligent Network Monitoring, Real-time Network Overview |
| Certification | CE,FCC |
| Environment | Operating Temperature: 0°C~50°C (32°F ~122°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
