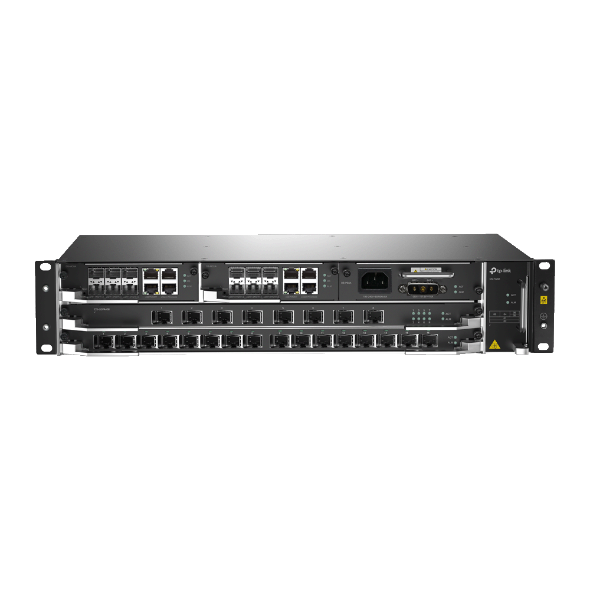

TP-Link DeltaStream Chassis 9-Port PON OLT-X2
- SKU: DS-P8000-X2
$5,468.51
Product Information
DeltaStream Chassis Optical Line Terminal X2
Product Features- 32x PON Ports:Â 2x service boards support up to 32 GPON ports or 32x XGS-PON & GPON combo ports.
- High Scalability: Supports 1:128 splitting ratio for GPON port and 1:256 for XGS-PON port.
- High Reliability: Dual main control units ensure automatic service switching without interruption.
- High-Speed Uplink Ports:Â 6x 10G SFP+ ports (per control unit)Â offer high-bandwidth connectivity.
- Dual Power Supplies: Carrier-class reliability with pluggable AC+DC power supply.
- L2 & Advanced L3 Functions:Â Satisfy numerous commercial needs.
- Centralized Management:Â Supports the management via the DeltaStream PONÂ Management System (DPMS), SNMP, CLI, and Web UI.
- Chassis Optical Line Terminal DS-P8000-X2
- 1x AC Power Cord
- 1x DC Power Cord
- 1x Console CableInstallation Guide
- Fiber Manager and Ground Wire
- Mouting Brackets, Screws and Rubber Feet
- ESD-Preventive Wrist Wrap
Specifications
Specifications
| Hardware Features | |
| Interface | 2x Service Boards up to 32x GPON Ports or 32x XGS-PON & GPON Combo Ports* Dual Main Control Unit: 6x 10G SFP+ 1x 1000M RJ45 Port 1x RJ45 Console Port 1x RJ45 Management Port 1x Alarm Port |
| Button | Reset Button |
| Power Supply | Dual Power Supply, AC+DC AC: 100V~240V, 50/60Hz DC: -38.4V -57.6V |
| Power Consumption | 2x DS-MCUA + 2x DS-LGPA-16 + DS-PSUA + DS-FANA: Max 262W |
| Dimensions ( W x D x H ) | Witdout angle iron and fiber manager: 443 x 271.3 x 88 mm Witd angle iron, witdout fiber manager: 446 x 271.3 x 88 mm (excluding angle iron mounting ears) 483 x 271.3 x 88 mm (including angle iron mounting ears) Witd angle iron and fiber manager: 447.2 x 271.3 x 88 mm (excluding angle iron mounting ears) 484.2 x 271.3 x 88mm (including angle iron mounting ears) |
| Software Features | |
| Security | ACL |
| DHCP | DHCP Server DHCP Relay |
| OMCI | Standard OMCI Management Supported |
| ONU Autdentication | ONU Auto Autdentication |
| ONU Security | Rouge ONU Detection and Isolation |
| Multi-Service | Multi-Service Traffic Identify and Rate Limit |
| QoS | IEEE 802.1p/DSCP QoS Voice VLAN Auto VoIP |
| Routing | Static Routing |
| Mulitcast | IGMP Snooping MLD Snooping |
| Centralized Management | Large-Scale Devices Management OLT Batch Configure, Upgrade, Reboot Multi-Site Management Intelligent Network Monitoring Real-time Network Overview |
| GPON Port Attribute | |
| Max. Splitting Ratio | 1:128 for GPON, 1:256 for XGS-PON |
| Transmission distance | 20 km |
| Data rate | GPON Downstream: 2.5 Gbps, Upstream: 1.25 Gbps XGS-PON Downstream: 9.953 Gbps, Upstream: 9.953 Gbps |
| Wavelengtd | Tx: 1490 nm Rx: 1310 nm |
| Interface type | SC/UPC |
| Fiber type | 9/125μm SMF (Single Mode Fiber) |
| Tx power | Class C+ |
| Others | |
| Certification | CE,FCC |
| Environment | Operating Temperature: 0°C - 50°C (32°F - 122°F) Storage Temperature: -40°C - 70°C (-40°F - 158°F) Operating Humidity: 10% - 90% non-condensing Storage Humidity: 5% - 90% non-condensing |
