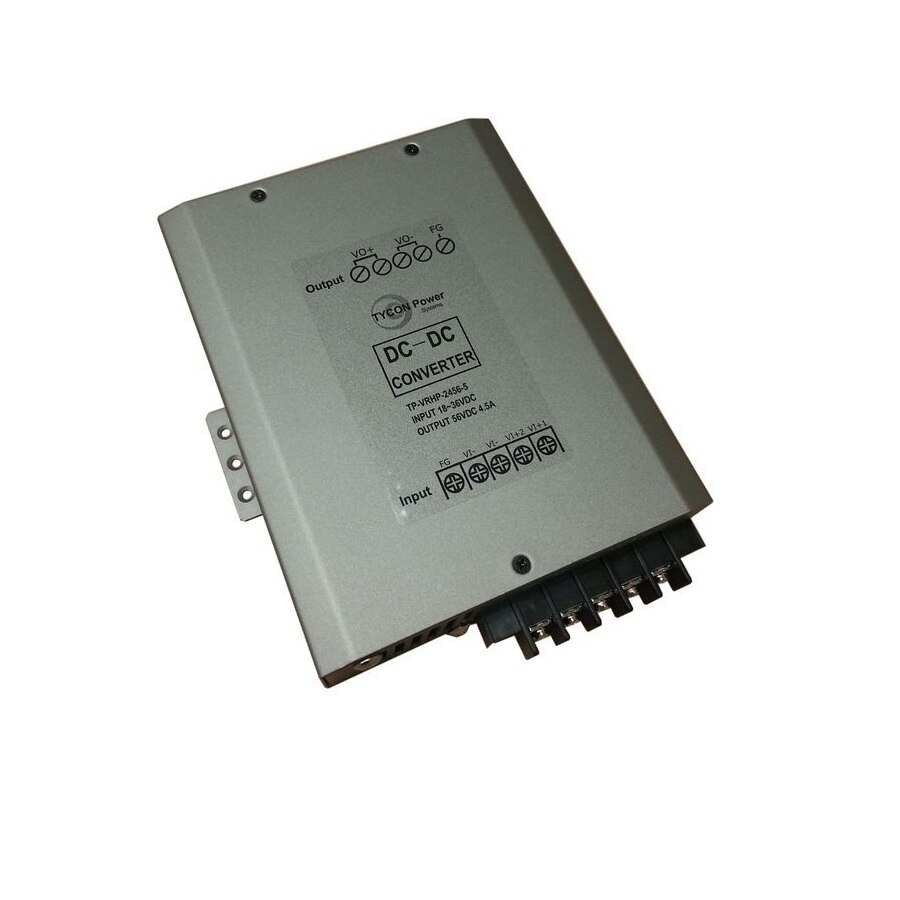

Voltage Converter 18-36VDC Input, 56VDC @ 4.46A 250W Regulated output.isolated
- SKU: TP-VRHP-2456-250
$486.49 $512.09
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
Voltage Converter 18-36VDC Input, 56VDC @ 4.46A 250W Regulated output.isolated
Specifications
Specifications TP-VRHP-2456-250
| DC Input Voltage Range | +/-18 to 36VDC |
| DC Voltage Output | 56VDC@4.46A |
| Maximum Power | 250W |
| Input/Output Isolation | Isolated |
| Efficiency | >83% |
| Load/Line | 5% / 1% |
| Ripple/Noise | 2% / 5% |
| Isolation | 1500VDC Min. 100M Ohms Min |
| Wire Gauge | 12AWG Max |
| Protections | Short Circuit, Overvoltage, Overload |
| Operating Temp | -22deg;F to 149deg;F (-30deg;C to +65deg;C) |
| Operating Humidity | 0 to 90% RH |
| Size | 5.9 x 7.4 x 1.7" (150 x 187 x 43.6mm) |
| Weight | 2.6lbs (1.2kg) |
| Warranty | 3 Years |
