Ubiquiti UniFi Dream Machine Special Edition
- SKU: UDM-SE
$702.22
Product Information
10G Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.
Specifications
Specifications UDM-SE
| Mechanical | |

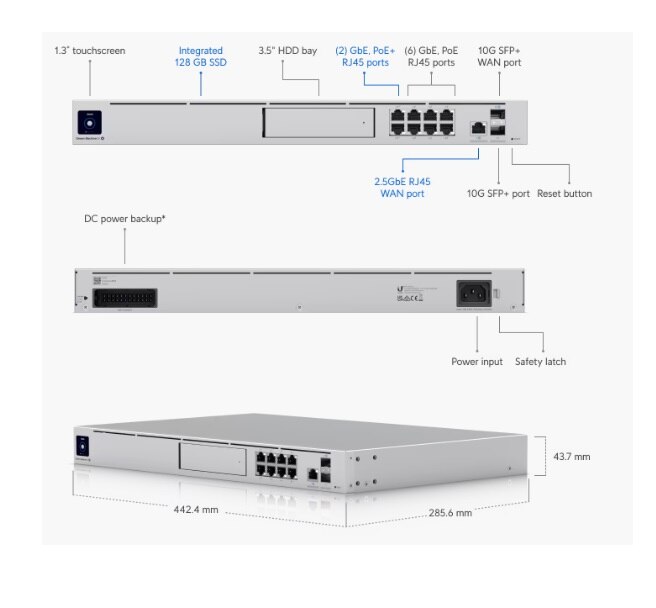

| Dimensions | 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24") |
| Weight | 4.95 kg (10.91 lb) |
| Enclosure materials | Aluminium CNC, SGCC steel |

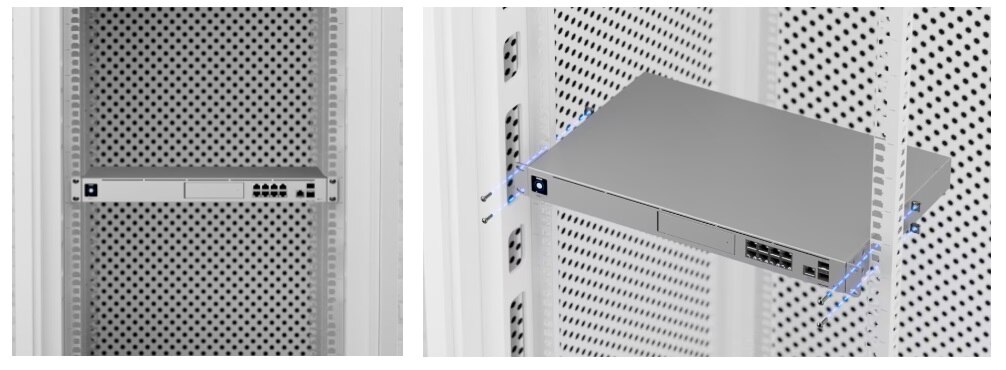

| Mount material | SGCC steel rack mount |
| Hardware | |
| Processor | Quad-Core ARM® Cortex®-A57 at 1.7 GHz |
| System memory | 4 GB DDR4 |
| On-board storage | 16 GB eMMC Integrated 128 GB SSD |
| IDS/IPS throughput | 3.5 Gbps* Measured with iPerf3 |
| Max. power consumption (excluding PoE output) | 50W |
| Power method | (1) Universal AC input, 100-240VAC, 4.4A Max, 50/60 Hz, (1) USP-RPS DC input, 52VDC, 3.94A |
| Power supply | AC/DC, Internal, 240W |
| Supported voltage range | 100 to 240VAC |
| Management interfaces | Ethernet, Bluetooth |
| Networking interfaces | (1) WAN: 2.5 GbE RJ45 port, (8) LAN: 1 GbE RJ45 ports |
| SFP+ interfaces | (1) WAN: 10G SFP+, (1) LAN: 10G SFP+ |
| PoE interfaces | (2) PoE+ IEEE 802.3at (pair A 1, 2+; 3, 6-), (6) PoE IEEE 802.3af (pair A 1, 2+; 3, 6-) |
| Max. PoE wattage per port by PSE 802.3af | 15.4W |
| Max. PoE wattage per port by PSE 802.3at | 30W |
| Voltage range 802.3af mode | 44 to 57V |
| Voltage range 802.3at mode | 50 to 57V |
| ESD/EMP protection | Air: ± 15 kV, contact: ± 8 kV |
| LCM display | (1) 1.3" touchscreen, Bootup animation: bootup in progress, Firmware upgrade icon: firmware upgrading |
| Button | Factory reset |
| Operating temperature | -10 to 40° C (14 to 104° F) |
| Operating humidity | 5 - 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| Ethernet | White: link/activity |
| SFP+ | White: link/activity |
| HDD | White: disk activity, Amber: disk error |
| RPS | Blue: ready |
