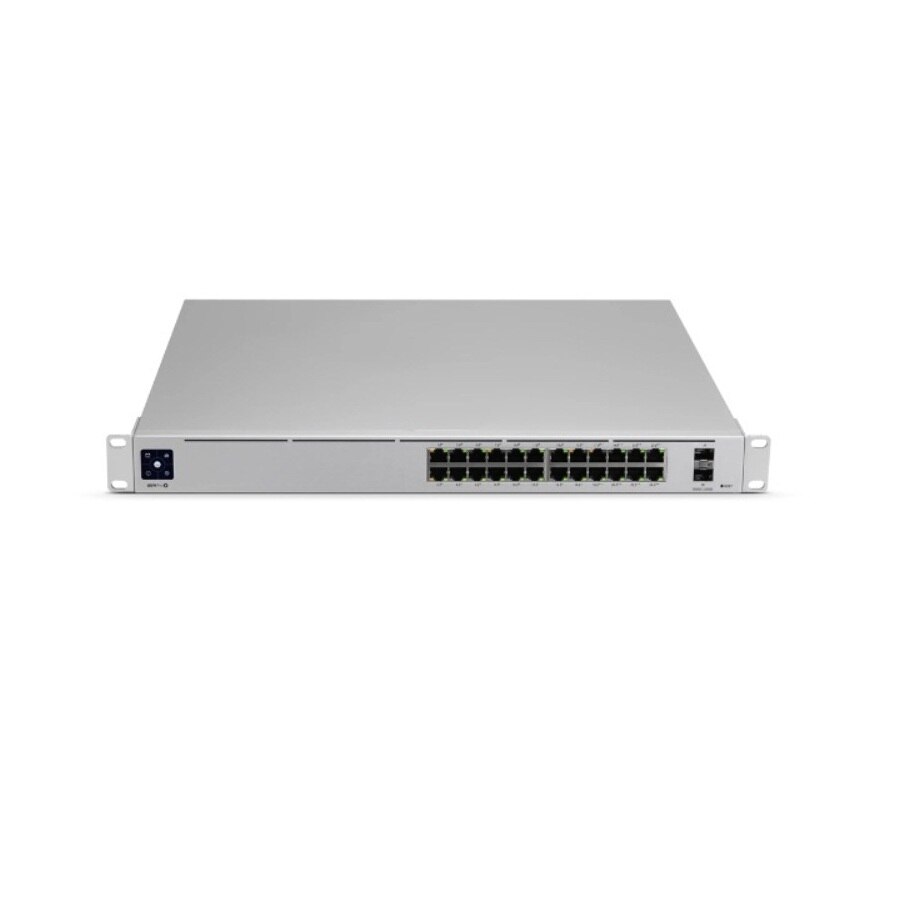

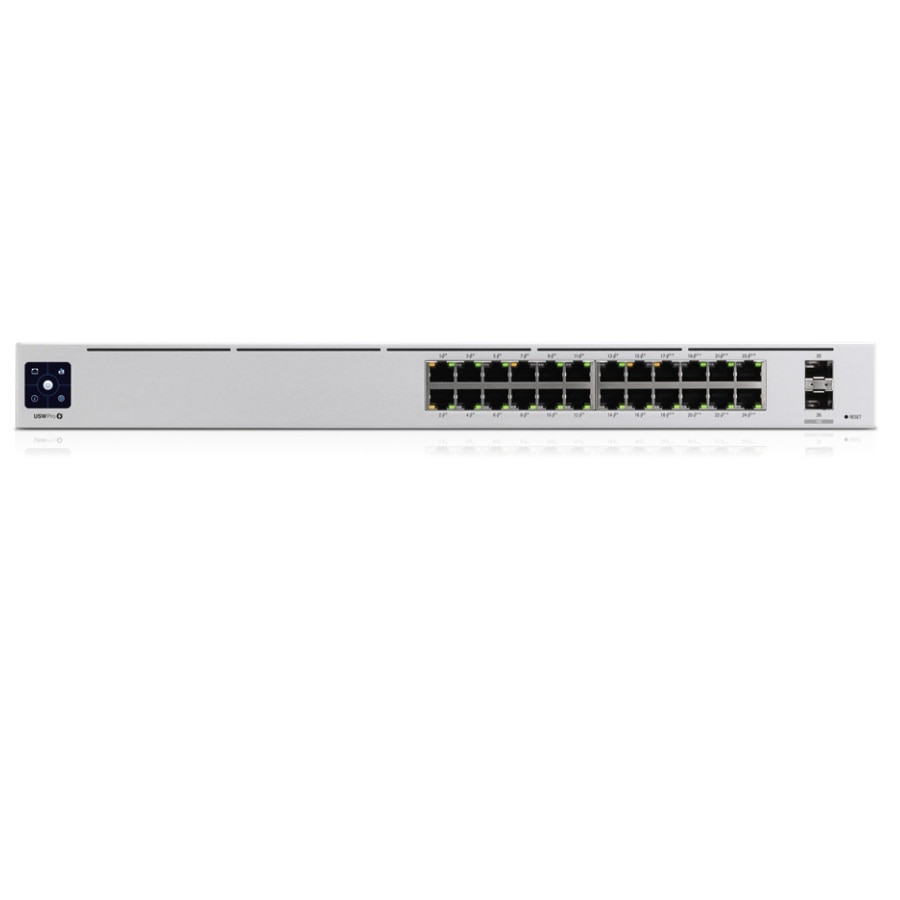

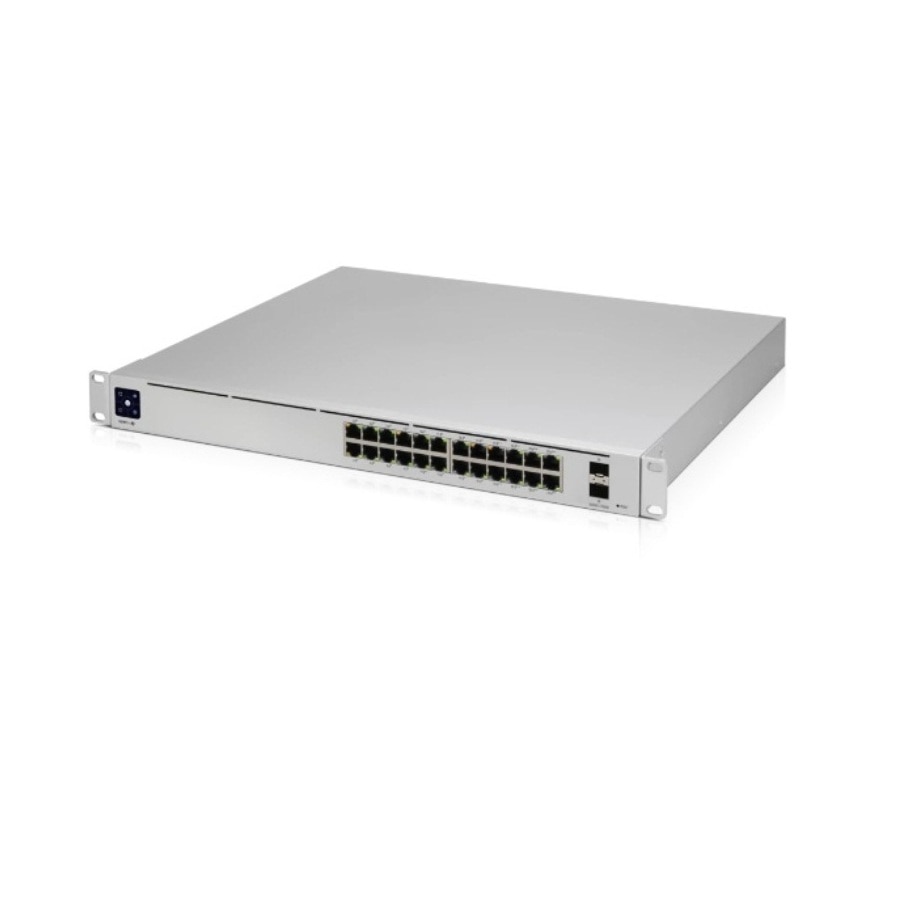

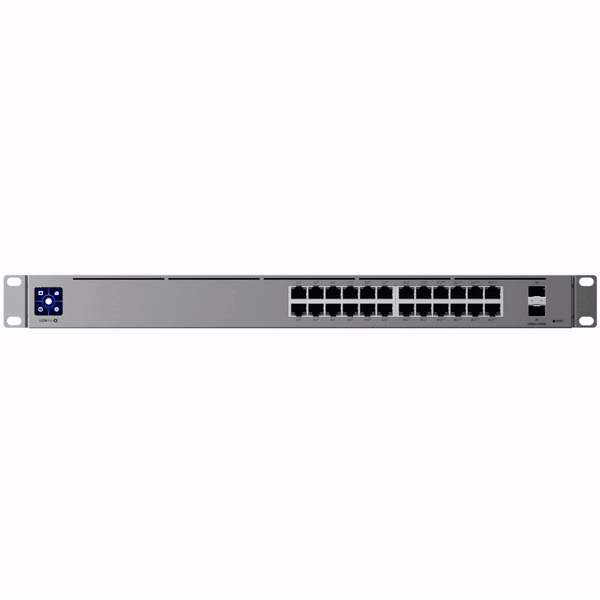

Ubiquiti UniFi Pro 24 PoE L3 Switch
- SKU: USW-Pro-24-POE
$954.75
Product Information
A 24-port, Layer 3 switch capable of high-power PoE++ output.
Specifications
Specifications USW-Pro-24-POE
| Dimensions | 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72") |
| Weight With Brackets | 4.30 kg (9.48 lb) 4.39 kg (9.68 lb) |
| Interfaces Networking Management | (24) 10/100/1000 RJ45 Ports (2) 1/10G SFP+ Ethernet Ports Ethernet In-Band |
| Total Non-Blocking Throughput | 44 Gbps |
| Switching Capacity | 88 Gbps |
| Forwarding Rate | 65.472 Mpps |
| Power Method Universal Input USP RPS DC Input | 100-240VAC, 50/60 Hz 52VDC, 7.69A; 11.5VDC, 2.61A |
| Power Supply | AC/DC, Internal, 450W |
| Voltage Range | 100 to 240VAC |
| Max Power Consumption (Excluding PoE Output) | 50W |
| LEDs System RJ45 Data Ports SFP Data Ports | Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| Total Available PoE | 400W |

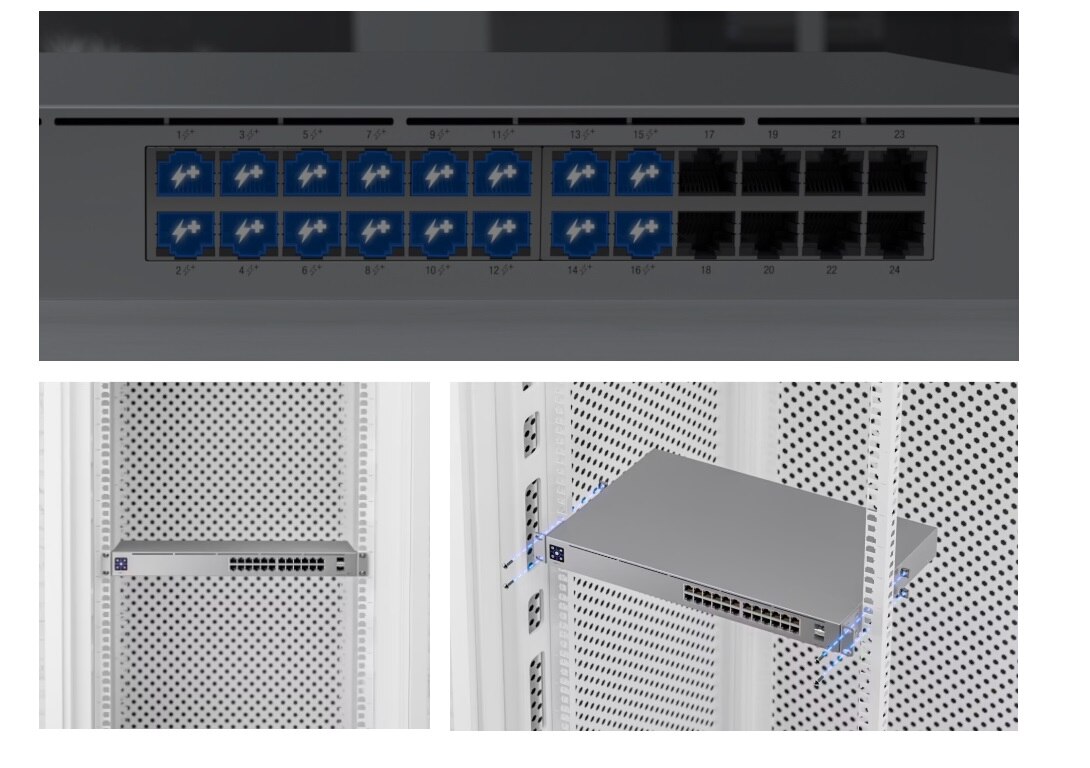

| PoE Interfaces Ports 1-16 Ports 17-24 | POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 60W PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
| Max. PoE Wattage per Port by PSE 802.3at 802.3bt | 32W 64W |
| Voltage Range 802.3af Mode 802.3at/bt Mode | 44-57V 50-57V |
