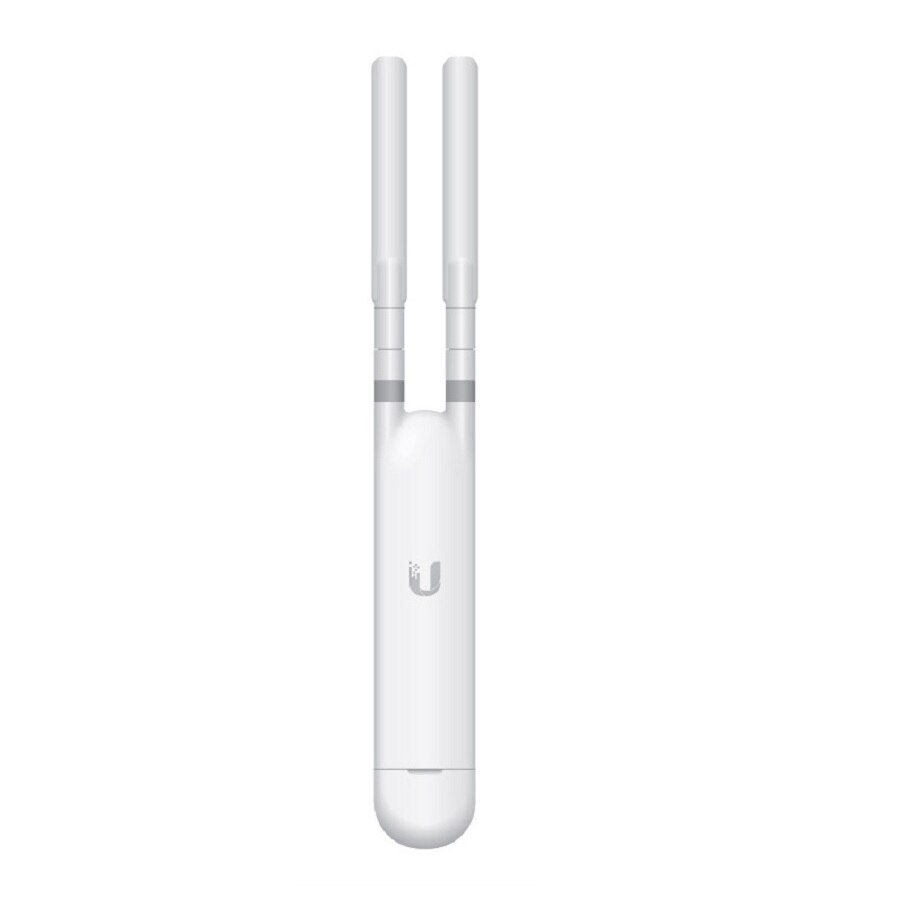

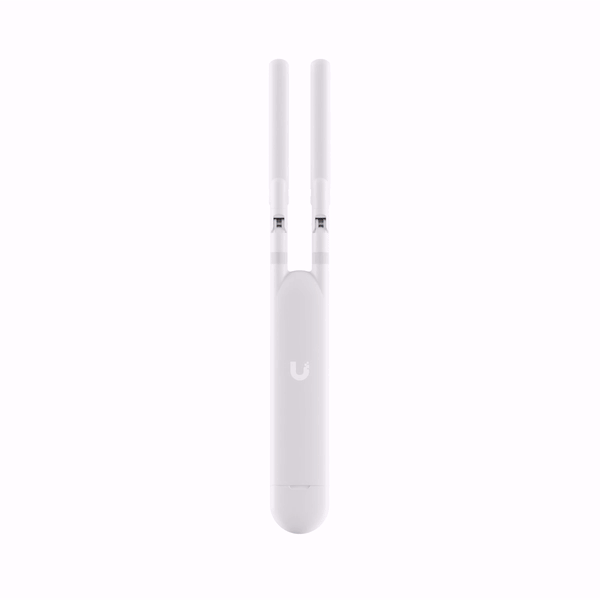

Ubiquiti UniFi AC Mesh Access Point (US)
- SKU: UAP-AC-M-US
$135.74
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Compact, indoor/outdoor WiFi 5 AP with 4 spatial streams and optional external antenna support for directional coverage.
Specifications
Specifications Ubiqiuti UAP-AC-M

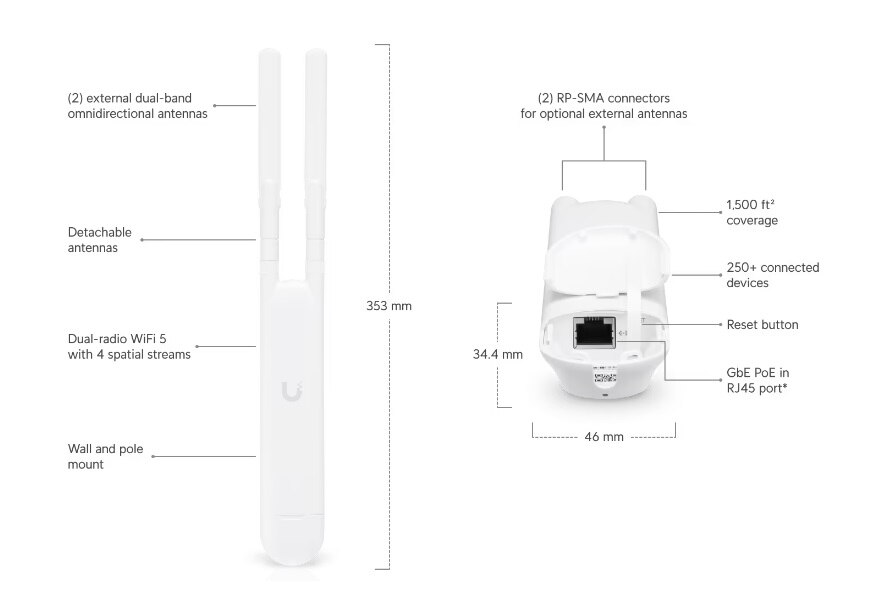

| Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35") |
| Weight | 152 g (5.36 oz) with Antennas |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Buttons | Reset |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return); 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) (Supported Voltage Range: 44 to 57VDC) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Save | Supported |
| Maximum Power Consumption | 8.5W |
| Maximum TX Power | 20 dBm/td> |
| Antennas | (2) External Dual-Band Omni Antennas |
| Wi-Fi Standards | 802.11 a/b/g/n/ac Dual Band 2.4/5GHz |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to Four per Radio |

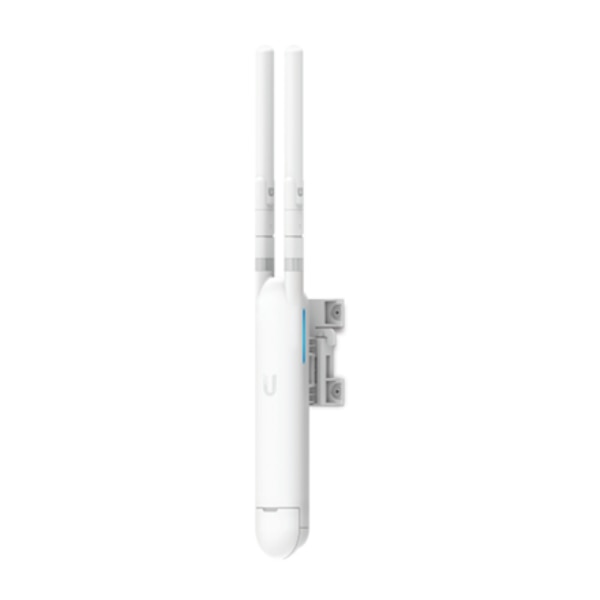

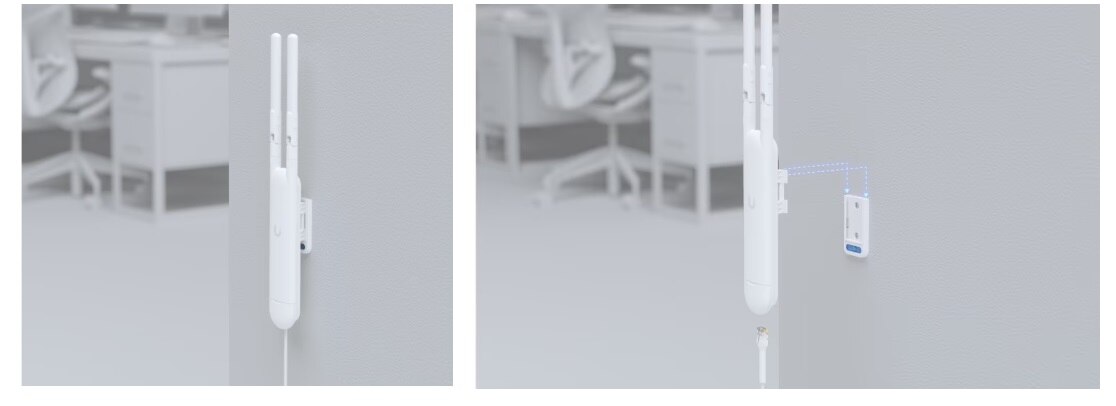

| Mounting | Wall/Pole/Fast-Mount (Kits Included) |
| Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 200+ |
| Standard | Data Rates |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
