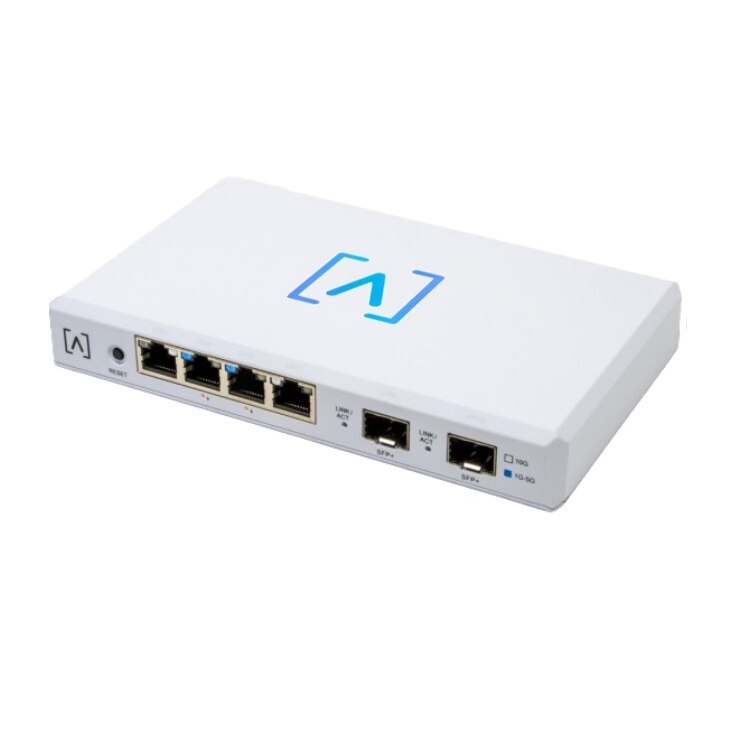

ALTA Labs 10Gbps Router 4x 2.5Gbps ports 2x SFP+ ports
- SKU: Route10
$278.04
- Manufacturer: ALTA Labs
- Data Sheet: Download
Product Information
ALTA Labs Route10 - 10Gbps Router
Specifications
Specifications Route10
| Dimensions | (7.09 x 4.33 x 1.17") 180 x 110 x 29.8 mm |
| Weight | 1.5 lbs |
| Enclosure Material | Top cover: polycarbonate Bottom cover: milled aluminum |
| Material Finish | Matte |
| Color | White |
| Mount Material | Injection Molded Plastic |
| Ports | |
| Network Interface | Ethernet, Bluetooth |
| Management Interface | (4) Autosensing 2500/1000/100/10 Mbps RJ45 Ports, (2) 10 Gbps/1.25 Gbps SFP+ Ports |
| LEDs | |
| PoE | Amber |
| RJ45 | Amber (Left LED): 10/100 Mbps Blue (Left LED): 1 Gbps White (Right LED): 2.5 Gbps |
| SFP+ | Blue: < 10 Gbps White: 10 Gbps |
| Status | RGB/Multi-Color |
| Hardware | |
| Processor | Quad-core Qualcomm 2.2 GHz |
| Button | Reset/Factory Reset |
| Power | |
| Power Supply | Universal AC, 100 - 240VAC 50-60Hz External |
| Maximum Input Power Consumption | 70W |
| POE Budget | 40W |
| Per-Port PoE | (2) 802.3at POE+, PoE+ (54VDC, 0.6A Max) |
| PoE Ports | 2 |
| Bluetooth Version | BLE |
| Total Bluetooth Power | 5 dBm EIRP |
| Bluetooth Gain | 3 dBi |
| MAC Table Size | 4k |
| Environmental | |
| Mounting Locking | Wallmount, Desktop |
| Operating Temperature | -5 to 50° C (23 to 122° F) With (1) 2W SFP+ Module: 45° C (113° F) With (2) 2W SFP+ Modules: 40° C (104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| RJ45 Port Surge Protection | 12kV for ESD - Contact, 25kV for ESD - Air |
| Software | |
| VLAN | 802.1Q |
| Easily Scale from Home to SMB to Stadium | Yes |
| Seamless Per-Client Settings | Yes |
| VPN Server | Yes, Multiple, Hardware-Accelerated |
| Actual Total Throughput | 25 Gbps Combined Upload/Download |
| RADIUS Authentication | Yes |
| Deep-Packet Inspection | Yes |
| Intrusion Detection and Prevention Systems | Yes, at 10 Gbps |
| WAN Failover and Load-Balancing | Yes |
